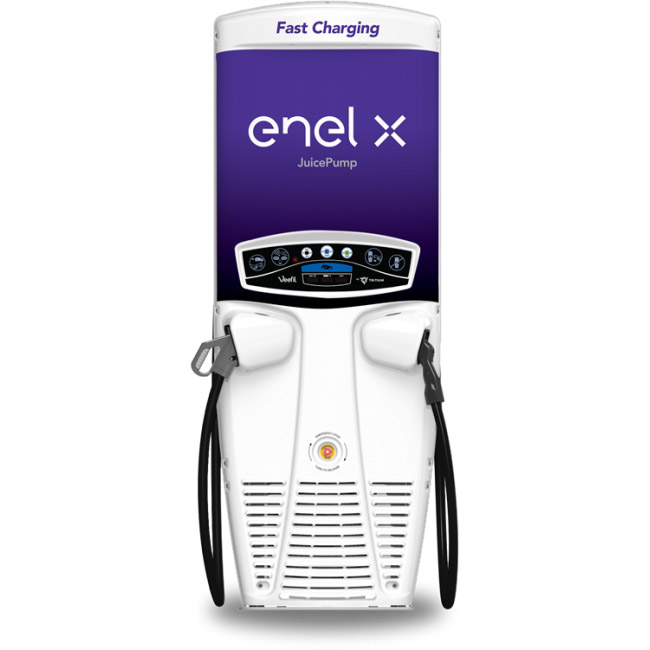

Portrait of the JuicePump 50kW.

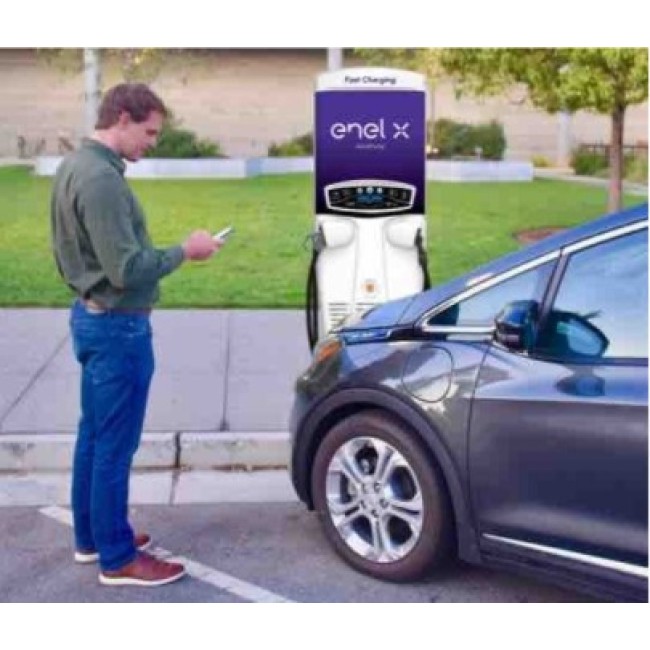

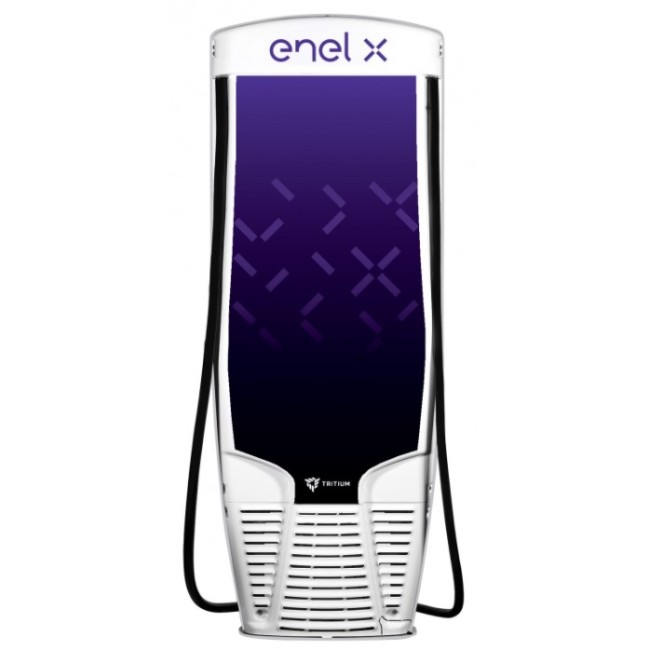

Portrait of the JuicePump 50kW.Backside image of the JuicePump 50kW.Close up image of customer using Enel X app to charge vehicle using the JuicePump 50kW.Customer using Enel X app to charge vehicle using the JuicePump 50kW.Image of reports page of the JuiceNet Enterprise software.

Enel X Way JuicePump™ 50kW - Commercial

Model: JuicePump-50

Product Highlights

4G/LTE, and Ethernet-enabled smart EV charging station (DCFC station) featuring two charging ports

  • Attract new customers or tenants by offering fast charging
  • Drivers can charge electric vehicles up to 80% battery capacity in 30-60 minutes
  • Allow drivers to easily access and pay via mobile device or optional credit card terminal
  • Drivers can charge conveniently with two 8-foot cables. 12-foot long cables are available by request
  • Minimize maintenance costs with a state-of-the-art liquid-cooling system
  • CCS-1 and CHAdeMo compliance ensures compatibility with all EVs (Tesla requires adapter)
  • 3-year manufacturer's warranty for commercial usage with optional 2-year extension
  • Option to generate revenue with unattended payment terminal (UPT) and in-app software payment option
  • Leverage the JuiceNet Enterprise software for user authentication, additional payment options, and advanced energy management and reporting

$32,000.00

Contact Us

Boost your business' electric vehicle infrastructure with JuicePump™, our DC fast charging (DCFC) solution. Attract new customers with charging stations that bring most EVs to an 80% charge in 30 - 60 minutes. Minimize maintenance costs with a state-of-the-art liquid-cooling system that keeps your station operating smoothly in all weather conditions. Locate your DC fast chargers in the optimal location thanks to JuicePump's small footprint and lightweight design. JuicePump is built to last and features two charging ports that provide universal compatibility with all EVs.

Faster charging

Drivers can charge vehicles up to 80% in 30 - 60 minutes

Eligible for incentives

JuicePump is approved for utility and state-sponsored incentive programs including CALeVIP

Flexible and easy installation

Save on CAPEX with compact and lightweight DCFC

Public charging network

Join a fast-growing network serving thousands of EV drivers

Universal compatibility (for USA & Canada)

CCS-1 and CHAdeMO compliance ensures compatibility with all EVs (Tesla requires adapter)

Smart Charging Software

Use the JuiceNet software platform to restrict station access and collect payment

Software Features
JuiceNet Enterprise
View charging station status and system health - view charging data including status, temperature, voltage, power, amperage; review summary of past events for each charger
Free public charging - offer free, unrestricted charging to the general public at designated times and days of the week
Dashboard reports and data export - view and export all charging data (on a time or per session basis) for billing and monitoring purposes. Access data via web portal, mobile portal, data export.
Time of use charging settings - control station availability by time and day of week
Load Groups - set up and manage load groups for capping and sharing electrical load for one or multiple stations
Authorized user support - configure your EVSE for usage only by permitted users via mobile app & QR code
User groups - create user groups with different access and pricing settings for differentiated charging experience
Multi-property support - create groups of charging stations and configure settings for stations at multiple properties
Set rates and pricing in dashboard - set different rates to configure pricing depending on charging station, user group, time and day of week
Mobile app payments for access-controlled stations - collect payment from users directly through the JuicePass Enterprise app
Connectors
CHadeMO and CCS (Type 1)
Cord Length
8 ft or optional 12 ft
Supply Input
480 V AC 3Ø, 52 kW
120 V AC 1Ø, 250 W
Output Voltage
50 V to 500 V DC
Electrical Output
Up to 50 kW
Idle Power Consumption
60 W (Active Power)
Supply Frequency
60 Hz
IP Rating
IP65, NEMA Type 3R
Efficiency
>92%
Power Factor
0.99
Temperature
-35°C to 50°C (-31°F to 122°F)
Network Connection
4G/LTE and Gigabit Ethernet
RFID
RFID supported with standards: MIFARE ISO/IEC14443A/B, ISO/IEC15693, ISO/IEC18000-3, FeliCa, NFC, EMV 2.0
Optional UPT (universal payment terminal) that supports VISA, AMEX, MasterCard and Apple Pay
Communication Protocol
Open ADR Certified. OCPP 1.6J
JuiceNet Enterprise Software
Precision measurement of power, energy, voltage & current Web-based portal: set payment rates and charging hours; monitor charging status and consumption data; control station access; load balancing Driver app to monitor and pay for charging (iOS & Android) Read more on JuiceNet Enterprise datasheet.
Weight
363.76 lbs/165 kg
Electrical Protection
Open ADR Certified. OCPP 1.6J
Dimensions
H: 78.74 in/2000 mm x W: 29.53 in / 750 mm x D: 13.0 in / 330 mm
Certifications
CE, cUL, UL, CHAdeMO, RCM, FCC, IC, CALeVIP

In the package, you will receive:

A lightweight and easy to install JuicePump 50kW Charging Station, featuring:

  • Two charging ports that provide universal compatibility with all EVs (Tesla requires adapter)
  • An 8 ft or 12ft charging cord
  • An optional universal payment terminal

Information on how to register for and access your selected software subscription will be provided separately via email.

JuicePump is equipped with a CCS-1 and a CHAdeMO cable and can therefore charge any EV on the market in North America. Drivers can charge their Teslas with JuicePump via a CHAdeMO adapter commonly owned and used by Tesla drivers.

With the JuiceNet smart charging platform, you can use the load balancing feature to cap your overall electricity consumption and control demand charges to reduce your energy bills. And, by controlling your load through software, you can expand your EV charging operations without expensive infrastructure upgrades.

A smart charging station is a station that is connected to the Internet and can respond to grid signals. Smart charging allows businesses to optimize charging sessions and participate in utility programs to save electricity and reduce electric bills.

By offering EV charging, you can establish your business as a forward-looking and sustainable leader. This can help attract high-value tenants, retain key employees, and increase customer spend. It also allows you to future-proof your property as both regulations and market demand converge to make EV charging a necessary amenity at commercial properties.

Use our rebate eligibility checker to search our database of local incentives and rebates available for electric vehicle supply equipment in your area. If you are eligible for a rebate, you will likely need to file appropriate materials with the utility or local organization providing the rebate after purchase. Our chargers are also available for instant rebates in certain areas, so please make sure to check your eligibility and to follow up with your energy provider.

Yes, JuicePump is UL Listed, which means it adheres to the highest safety standards for electric vehicle supply equipment.

If you are not 100% satisfied with your purchase, you can return the product for a refund within 30 days of your purchase. Learn more about our return policy here.

We offer a 3-year limited warranty with an optional 2-year extension for the JuicePump 50kW charging station. Please note that this warranty is only valid for use under normal commercial operating conditions. Using the JuicePump 50kW outside of normal commercial operating conditions voids the commercial warranty.

Installation can be completed by trained installers and Enel X installation partners. Contact State Electric Sales to learn more.

Yes, JuicePump stations are ruggedized for indoor and outdoor installation, even in extreme weather conditions. All JuicePump stations meet NEMA Type 3R standards for durability.
